Products

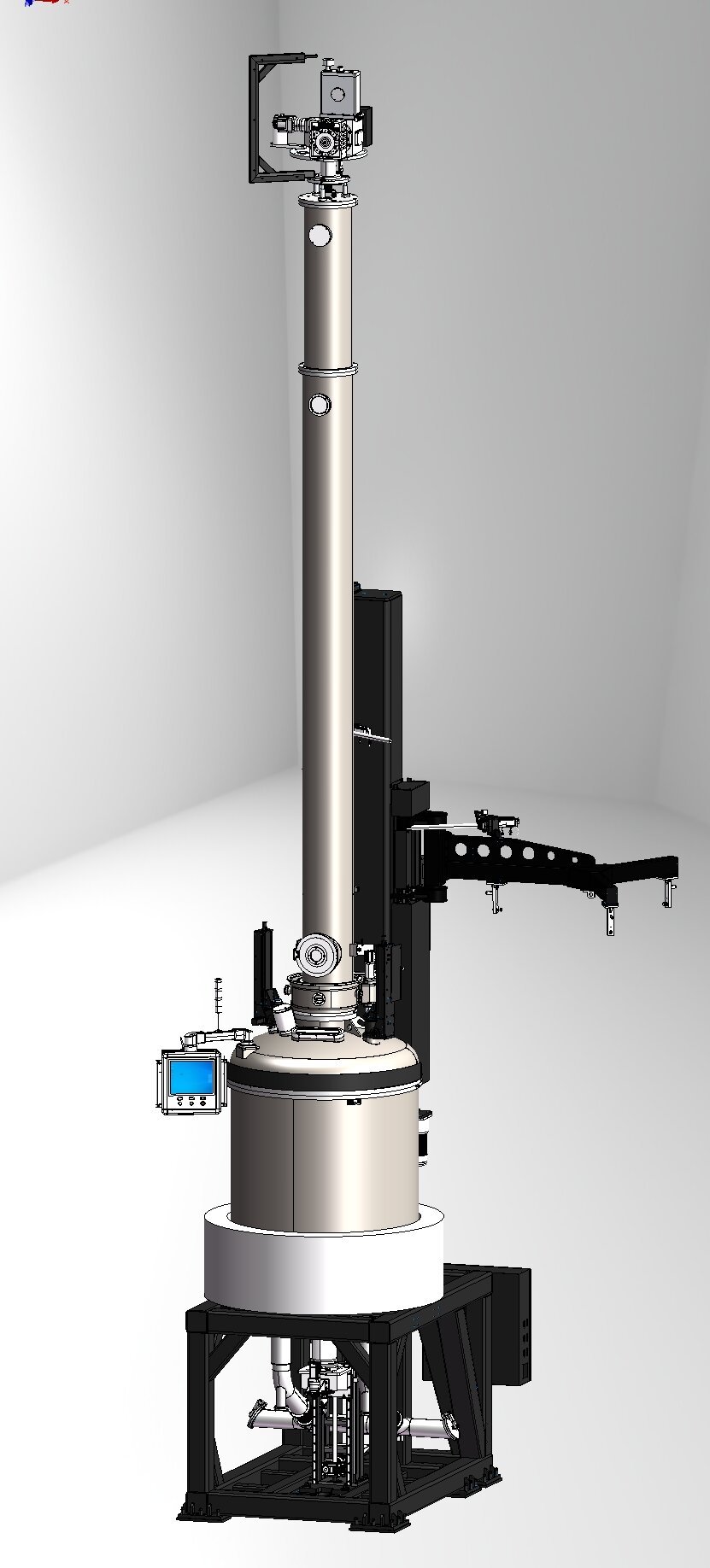

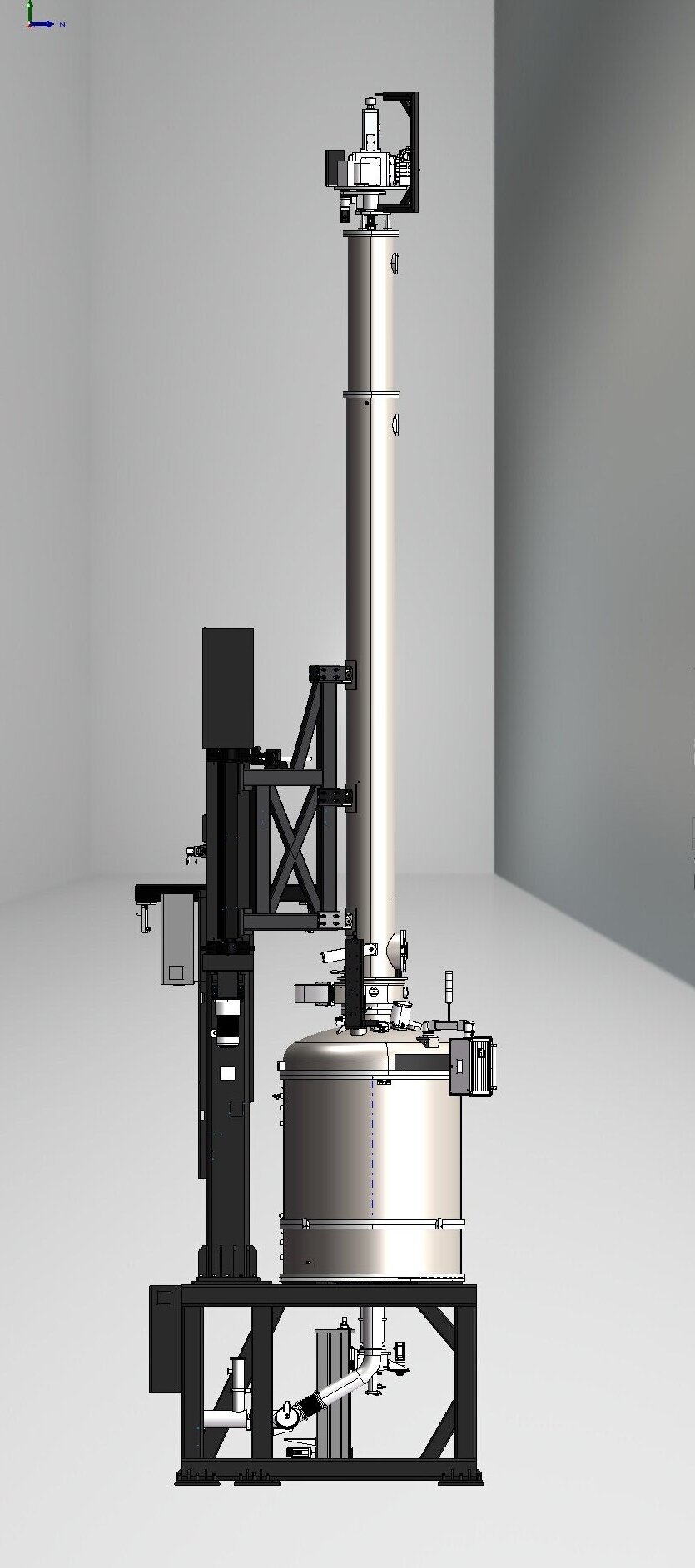

MCZ-1600 straight pull
Category: Single crystal furnace equipment
Thermal field size: 32 "-42"
Crystal diameter: Φ8 "-Φ14"
| Equipment model: | MCZ-1600 straight pull | Interior diameter of main furnace: | 1600mm | Main furnace chamber height: | 1400 650mm |
| Interior diameter of auxiliary furnace: | 410mm | Length of auxiliary furnace chamber: | 5500 1600mm | Crucible Travel: | 900mm |
| Seed crystal fast: | ≥800mm/min | Slow seed speed: | 0 .2- 8.0mm/min | Seed speed: | 0 - 25.0rpm |
| Crucible Fast: | ≥200mm/min | Crucible slow speed: | 0.02- 1.0mm/min | Crucible speed: | 0 - 20.0rpm |
| Vacuum line: | DN150x2 | Upper bearing weight: | 1500kg | Lower bearing weight: | 2000kg |
Material, local size can be customized according to customer requirements
